Vertex Inline Automatic Pallet Wrapping Machine

Automated Inline - Pallet Wrapping System

Custom designed and manufactured in Italy to every clients specific needs, the “Inline Pallet Wrapping Systems” are your clients perfect solution to every automated production or packing line. Engineered to be the most cost effective, efficient and reliable packaging solution, these automated machines are guaranteed to save you time and money.

​

These custom built Omni Inline Machines will take you from manual labour intensive pallet wrapping to a completely automatic palletising system through the use of electronic software and computerisation. Endless options are available on these custom built machines to ensure our customised Pallet Wrapping Systems give you 100% satisfaction, being your perfect packaging solution. These options include:

Benefits of Custom Built Wrapping Systems:

Increase warehouse efficiency.png

Increase

Productivity

ELIMINATE Stretch Film Breakages.png

Eliminate

Stretch Film Breakages

Save the environment by halving plastic

Reduce

Plastic Disposal

Reduce pallet damage with improved load

Improve

Load Containment

Save labour costs of manual wrapping.png

Reduce

Plastic Disposal

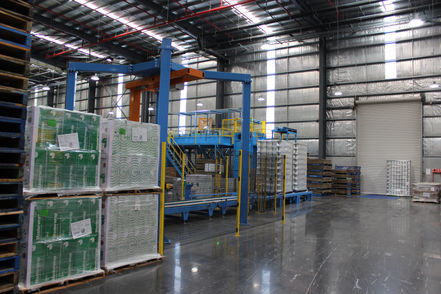

Vertex - Pallet Wrapping Machine

(Rotating Arm)

The Omni Vertex provides the art of reliability with the dependence you can have on a European manufactured, engineered, designed, assembled machine which is what you need in a non-stop operation.

​

This machine is the solution for those working with either inline production lines or have heavy/unstable pallets. Having an exclusive power prestretch of over 400% can provide a guaranteed film savings of over 50%.

Pallets Wrapper Per Hour
Vertex X25 = 40
Vertex X40 = 80
Vertex X40 Ring Wrapper = Up to 160


Product Specifications


  • Electronic printed circuit board

  • Frequency controller for carriage speed adjustment

  • Frequency controller for arm rotation speed adjustment

  • Maximum height of pallet: 2400mm

  • Max size of the pallet: 1200mm x 1200mm

  • Power pre-stretch carriage

  • Photocell to detect the pallet height

  • Safety stop loop at the base of the mast

  • Stop at 0 position

  • Power board IP54

  • 3 password levels (including lock password)

  • cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height Adjustable parameters by the control panel without password:

  • 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack

  • Storage of 32 end user programs

  • 3 working ways: semi manual, semiautomatic, fixed height

  • Strengthening operation

  • Acoustic warning at the cycle beginning and stop

  • Auto diagnostic

  • Wrapped pallet counter

  • Receiver for infrared/radio remote control

  • Powder coating


Extra Options
–  Pre Stretch up to 420%
–  Power pre-stretch with auto cut-off system
–  Double prestretch system - wrap pallets double as quick
–  Mechanical system to brake roll containers
–  Barcode readers - wrap pallets based upon barcodes
–  2 years warranty : subject to service agreement
–  Roping system
–  3000mm wrapping height
–  Remote control
–  Photocell for dark loads
–  Safety fences
–  Auto roll change
–  Anti static rollers
